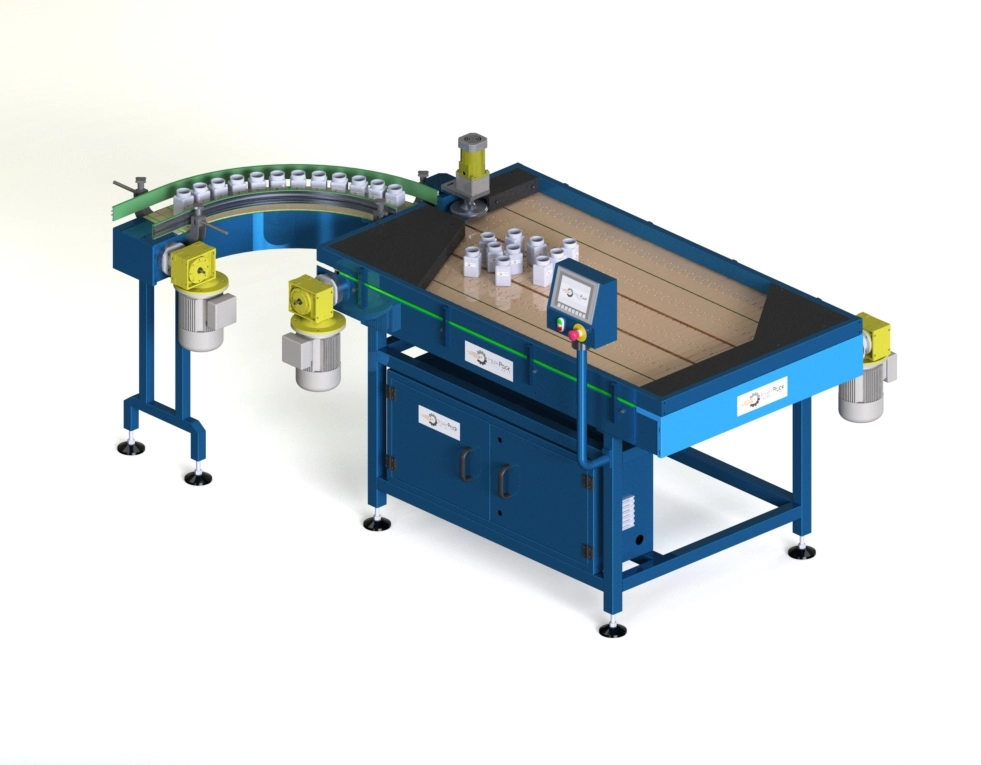

Bi-Directional Accumulation Conveyor
Our High-Performance Bi-Directional Accumulation Conveyor
The bi-directional accumulation conveyor is designed to allow product buffering and controlled flow in both directions. It enables accumulation without line pressure and supports flexible material handling between upstream and downstream processes.
1. Conveyor Type
- Conveyor Category: Accumulation conveyor
- Drive Configuration: Central drive or dual-end drive
2. Mechanical Specifications
3.1 Frame
| Material Options | Mild steel powder-coated, Stainless steel 304/316 |
| Side Frame Height | 150 mm |
| Frame Thickness | 2 mm |
| Construction | Welded frame |
3.2 Conveyor Dimensions
| Belt Width | 192 mm |
| Overall Length | 3 Mtr.–4 Mtr. |
| Top of Belt Height | 875 mm ± 25 mm |
3. Drive System
4.1 Motor
| Type | AC induction |
| Power Rating | 3.52 KVA |
| Voltage | 230V AC (1-phase) |
4.3 Controls
| Motor Control | VFD |
| Speed Adjustment | 0–100% |
| Soft Start/Stop | Included |
| Control | PLC |
4. Load Capacity
Load per Meter: 300 TO 500 products
5. Safety Features
- Emergency stop stations
- Side guards to prevent product fall-off
- Motor overload protection
