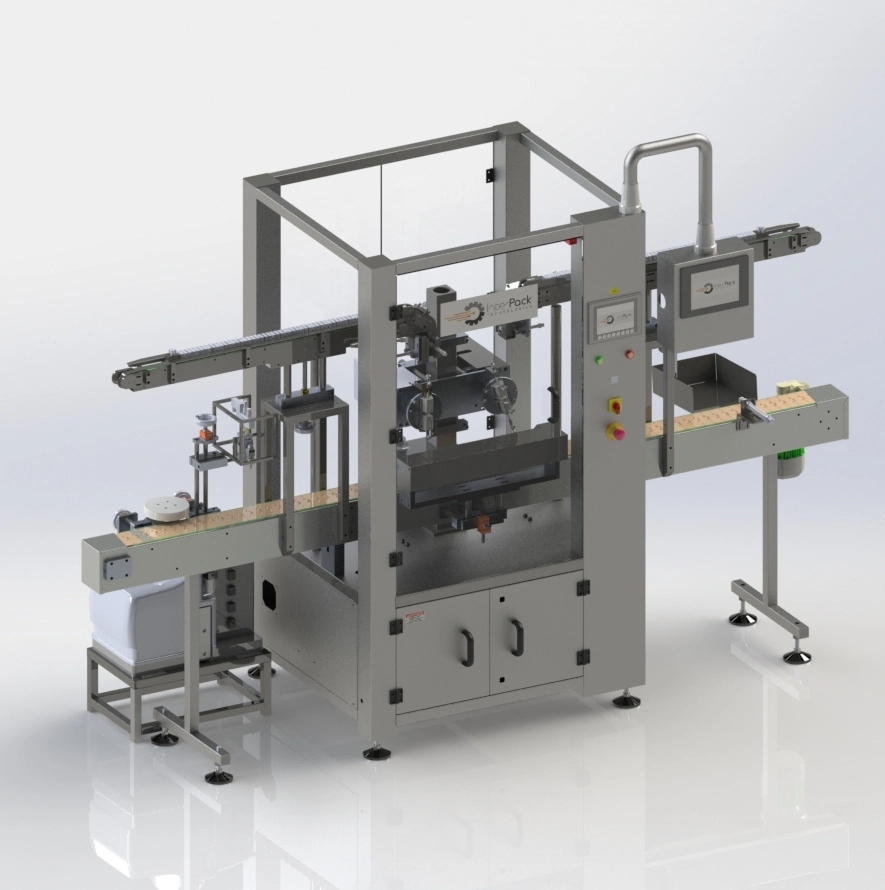

Leaflet Pasting Machine
Our High-Performance Leaflet Pasting Machine - Technical Specifications
A leaflet pasting machine (also known as an outserter) is used for automatically feeding, placing, and pasting folded leaflets on bottles/containers in pharmaceutical, nutraceutical and cosmetic packaging lines.
1. Machine Function
- Automatic feeding, picking, pasting or placing of folded leaflets.
- Suitable for top pasting or side pasting (depending on model).
2. Bottle / Container Compatibility
- Bottle Diameter: 40- 125 mm
- Bottle Height: 40- 225 mm
- Compatible with round, square, oval bottles depending on model.
3. Leaflet Specification
- Supports a range of leaflet sizes (folded type).
- Material: Standard paper, pharma inserts.
- Thickness & size range adjustable with major change parts.
4. Machine Speed
- Standard Speed Range: 100–140 bottles/min.
- Speed depends on bottle size and leaflet dimension.
5. Construction & Material
- Frame: Stainless Steel (SS 304).
- Safety Cabinet: SS with polycorbonate/glass windows.
- Hygienic design for pharma packaging.
6. Power & Utilities
- Power Supply: 230 VAC, 1‑phase .
- Power Consumption: Approx. 3.5 KVA
- Compressed Air: 6–7 bar
7. Control System
- PLC‑based control with HMI touch screen.
- GMP compliant control panel.
- Interlocks: Low Leaflet Level Alert
8. Optional Features
- Hot melt glue system.
- Vision inspection system (barcode, pharma code, leaflet presence).
- Automatic rejection of missing/incorrect leaflet bottles.
- Online camera verification & feedback to PLC.
9. Machine Dimensions
- Typical Length: 2500 mm
- Width: 900 mm.
- Height: 1900–2200 mm.
- Conveyor Height: 875+/-25 mm.
10. Key Applications
- Pharmaceuticals – bottles with dosage leaflets.
- Cosmetics – instruction leaflet placement.
- Chemical / consumer goods packaging.
